MS Channels
MS Channels for Structural Excellence
Our MS Channels (Sloping Flange Channels) are widely used in structural frameworks, fabrication, supports, and heavy engineering applications. Designed to meet IS standards, these channels offer optimal sectional properties, excellent weldability, and consistent mechanical performance. With controlled dimensions, precise flange slopes, and accurate radii, our channels ensure easy installation and enhanced structural stability.

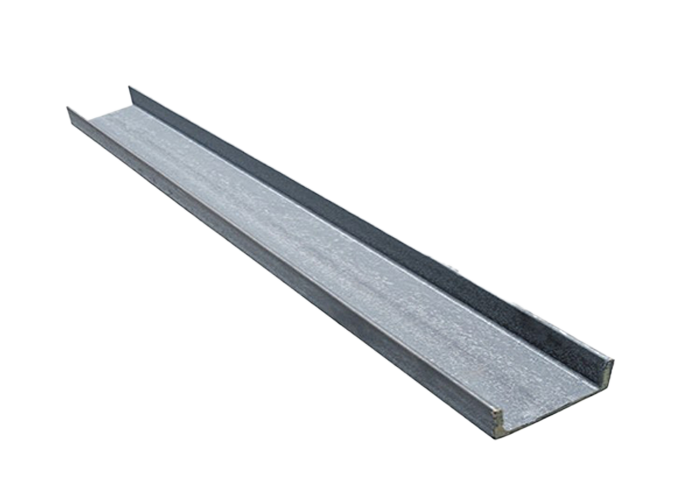

TARA 75 × 40 Channel
| Designation | TARA 75 × 40 |
| Mass (Nominal) | 5.70 Kg/m |
| Sectional Area | 7.26 cm² |
| Web Width (D) | 75 mm |
| Flange Width (B) | 40 mm |
| Web Thickness (t) | 3.7 mm |
| Flange Thickness (T) | 6.0 mm |
| Flange Slope | 91.5° |
| Root Radius | 6.0 mm |
| Toe Radius | 2.0 mm |

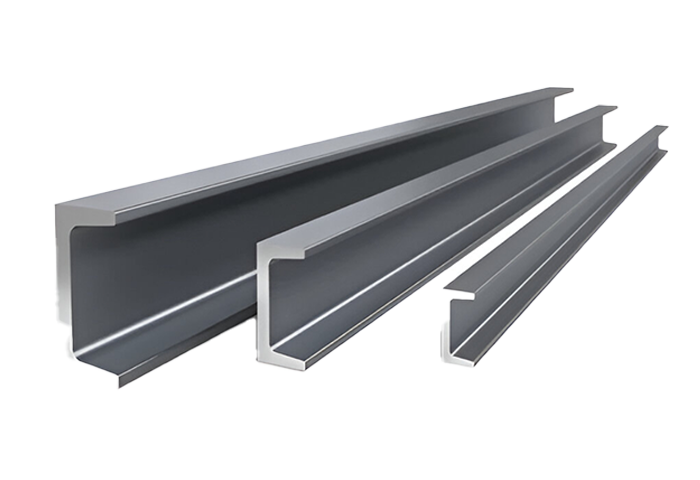

MC 75 × 40 Channel
| Designation | MC 75 × 40 |
| Mass (Nominal) | 7.14 Kg/m |
| Sectional Area | 9.10 cm² |
| Web Width (D) | 75 mm |
| Flange Width (B) | 40 mm |
| Web Thickness (t) | 4.8 mm |
| Flange Thickness (T) | 7.5 mm |
| Flange Slope | 96.0° |
| Root Radius | 8.5 mm |
| Toe Radius | 2.4 mm |
TARA 100 × 50 Channel
| Designation | TARA 100 × 50 |
| Mass (Nominal) | 7.90 Kg/m |
| Sectional Area | 10.0 cm² |
| Web Width (D) | 100 mm |
| Flange Width (B) | 50 mm |
| Web Thickness (t) | 4.0 mm |
| Flange Thickness (T) | 6.4 mm |
| Flange Slope | 91.5° |
| Root Radius | 6.0 mm |
| Toe Radius | 2.0 mm |
MC 100 × 50 Channel
| Designation | MC 100 × 50 |
| Mass (Nominal) | 9.56 Kg/m |
| Sectional Area | 12.20 cm² |
| Web Width (D) | 100 mm |
| Flange Width (B) | 50 mm |
| Web Thickness (t) | 5.0 mm |
| Flange Thickness (T) | 7.7 mm |
| Flange Slope | 96.0° |
| Root Radius | 9.0 mm |
| Toe Radius | 2.4 mm |
Product Benefits
High Structural Strength
Manufactured as per Indian Standard specifications, our MS Channels provide excellent load-bearing capacity, making them ideal for heavy structural and industrial applications.
Precision Dimensional Accuracy
Controlled rolling processes ensure uniform web thickness, accurate flange width, and consistent flange slope for perfect fitting and easy fabrication.
Superior Weldability
Low carbon content and optimized chemical composition enable smooth welding without compromising the structural integrity of the channel.
Long-Term Durability
Robust section properties and precise radii enhance resistance to deformation, ensuring long service life even under demanding conditions.
Versatile Applications
Suitable for construction frameworks, industrial sheds, machinery supports, fabrication work, and infrastructure projects.
Consistent Quality Assurance
Each channel undergoes strict quality checks to ensure compliance with Indian Standards, delivering reliable performance across every batch.
FAQs
A Sloping Flange Channel is a structural steel section with inward-sloping flanges, designed to provide better load distribution and structural stability.
Yes, all our MS Channels are manufactured strictly in accordance with Indian Standard specifications.
They are widely used in structural frames, industrial sheds, bridges, fabrication works, equipment supports, and construction projects.
We offer multiple sizes including 75 × 40 mm and 100 × 50 mm variants in both TARA and MC series.
TARA channels are lighter sections, while MC channels are heavier with increased thickness and higher load-bearing capacity.
Yes, they offer excellent weldability and are highly suitable for cutting, drilling, and fabrication work.
Dimensions are precisely controlled during manufacturing to ensure consistent web width, flange thickness, and sectional properties.
High-quality mild steel is used, ensuring strength, ductility, and durability.
Yes, when properly coated or painted, MS Channels can perform effectively in outdoor environments.
Yes, their sectional design and flange slope ensure efficient stress distribution and high load-bearing capability.
