Angle
MS Equal Leg Angles
Our MS Equal Leg Angles are manufactured in accordance with Indian Standard specifications, offering excellent structural strength, dimensional accuracy, and long-lasting performance.
Reliable Equal Leg Angles for Structural & Fabrication Needs
MS Equal Leg Angles feature equal-length legs with precise thickness and accurate radii, ensuring uniform load distribution and ease of fabrication. Produced using high-quality mild steel, these angles provide excellent weldability, durability, and consistent performance, making them a preferred choice for engineers, contractors, and fabricators.

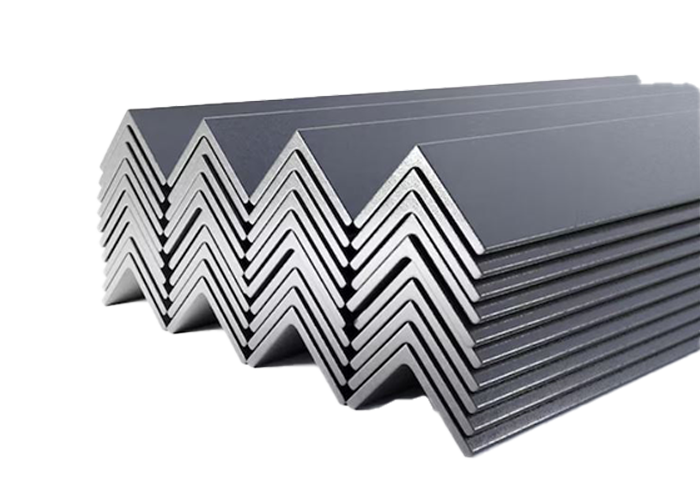

35 × 35 × 5 MS Angle
| Designation | 35 × 35 × 5 |
| Mass (Nominal) | 2.60 Kg/m |
| Sectional Area | 3.27 cm² |
| Leg Length (A × B) | 35 × 35 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 5.0 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |

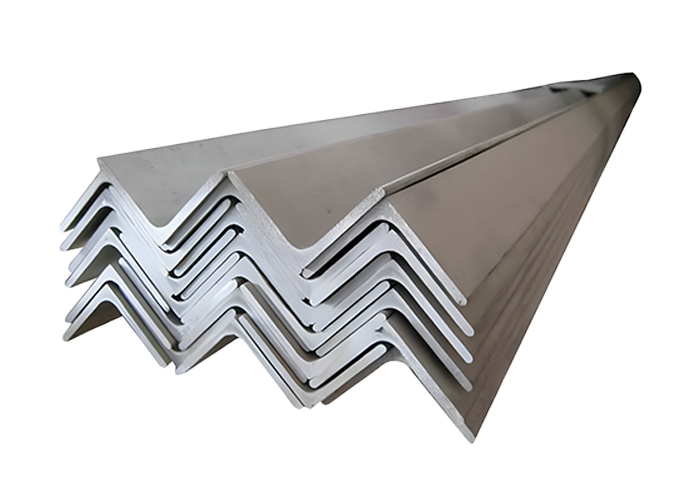

40 × 40 × 5 MS Angle
| Designation | 40 × 40 × 5 |
| Mass (Nominal) | 3.00 Kg/m |
| Sectional Area | 3.78 cm² |
| Leg Length (A × B) | 40 × 40 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 5.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |
40 × 40 × 6 MS Angle
| Designation | 35 × 35 × 5 |
| Mass (Nominal) | 2.60 Kg/m |
| Sectional Area | 3.27 cm² |
| Leg Length (A × B) | 35 × 35 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 5.0 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |
40 × 40 × 5 MS Angle
| Designation | 40 × 40 × 5 |
| Mass (Nominal) | 3.00 Kg/m |
| Sectional Area | 3.78 cm² |
| Leg Length (A × B) | 40 × 40 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 5.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |
40 × 40 × 6 MS Angle
| Designation | 40 × 40 × 6 |
| Mass (Nominal) | 3.50 Kg/m |
| Sectional Area | 4.45 cm² |
| Leg Length (A × B) | 40 × 40 mm |
| Leg Thickness | 6.0 mm |
| Root Radius | 5.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |

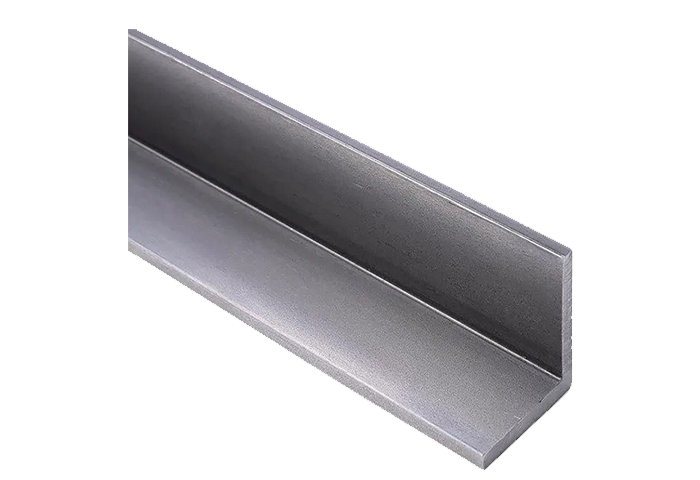

50 × 50 × 5 MS Angle
| Designation | 50 × 50 × 5 |
| Mass (Nominal) | 3.80 Kg/m |
| Sectional Area | 4.79 cm² |
| Leg Length (A × B) | 50 × 50 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 5.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |

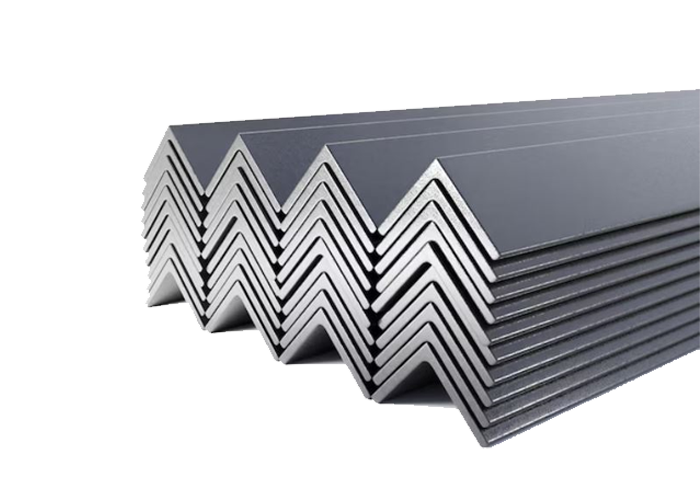

50 × 50 × 6 MS Angle
| Designation | 50 × 50 × 6 |
| Mass (Nominal) | 4.52 Kg/m |
| Sectional Area | 5.75 cm² |
| Leg Length (A × B) | 50 × 50 mm |
| Leg Thickness | 6.0 mm |
| Root Radius | 6.0 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |

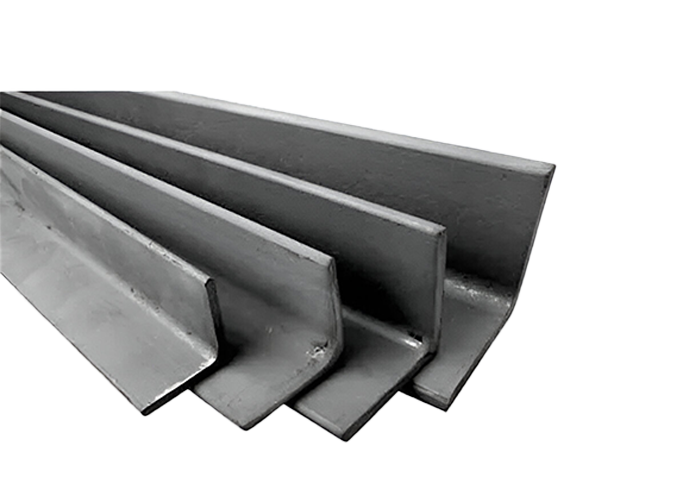

65 × 65 × 5 MS Angle
| Designation | 65 × 65 × 5 |
| Mass (Nominal) | 5.15 Kg/m |
| Sectional Area | 6.60 cm² |
| Leg Length (A × B) | 65 × 65 mm |
| Leg Thickness | 5.0 mm |
| Root Radius | 6.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |

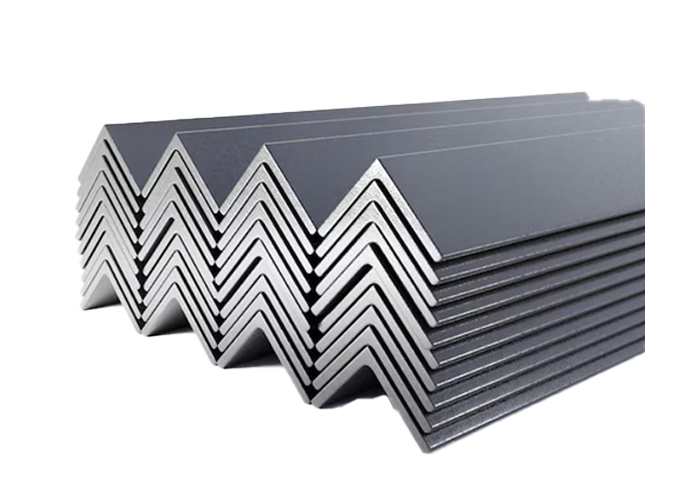

65 × 65 × 6 MS Angle
| Designation | 65 × 65 × 6 |
| Mass (Nominal) | 5.80 Kg/m |
| Sectional Area | 7.44 cm² |
| Leg Length (A × B) | 65 × 65 mm |
| Leg Thickness | 6.0 mm |
| Root Radius | 6.5 mm |
| Toe Radius | Should be reasonable square |
| Slope Angle | 90 Degree |
Product Benefits
High Structural Strength
MS Equal Leg Angles provide excellent load-bearing capacity and structural stability, making them ideal for framing, bracing, and support applications.
Uniform Load Distribution
Equal leg dimensions ensure balanced stress distribution across both legs, improving performance in structural and fabrication works.
Precision Rolled Dimensions
Manufactured with accurate leg length, thickness, and radii, these angles ensure easy alignment, tight joints, and faster installation.
Excellent Weldability & Fabrication
High-quality mild steel composition allows smooth welding, cutting, drilling, and bending without cracking or deformation.
Long-Lasting Durability
Robust construction and consistent sectional properties enhance resistance to wear, stress, and deformation over extended service life.
Versatile Application Range
Suitable for construction, industrial sheds, transmission towers, machinery supports, fabrication work, and infrastructure projects.
FAQs
Yes, all MS Equal Leg Angles are manufactured in accordance with Indian Standard specifications.
Available sizes include 35×35, 40×40, 50×50, and 65×65 mm with varying thicknesses.
Equal leg angles have both legs of the same length, while unequal leg angles have legs of different lengths for specific structural needs.
Yes, MS Equal Leg Angles offer excellent weldability and are ideal for fabrication, cutting, and drilling operations.
They are widely used in construction, fabrication units, industrial sheds, infrastructure projects, and engineering applications.
Dimensions are precisely controlled during manufacturing to ensure consistency in leg length, thickness, and sectional area.
Yes, when properly coated, painted, or galvanized, they are suitable for outdoor use.
Angles are generally supplied in standard commercial lengths and can also be cut to custom lengths if required.
Yes, all angles undergo strict dimensional and quality checks before dispatch.
Yes, their symmetrical design ensures efficient load distribution and reliable structural performance.
